Specifications

LCD TV MainBoard (LCD Board)

Model: MST6M16

Support: Max.1920x1080

Multipurpose LCD controller

Suitable Asian market

Designed to support dual/single LVDS which more than 19-inch LCD panel

Main feature of 6M16V2.0-C can support VGA, HDMI, YPBPR, AV1, AV2, S-video, TV signal input

It can support AV output

It can support USB function (optional)

Features:

Video input:

TV: video system: PAL, SECAM

Sound system: BG, DK, I, L and L

Receive channel: 120

S-video S-Y: 1.0V Vp-p±5%

S-C: 0.3Vp-p±5%

CVBS: 1.0Vp-p±5%

YPbPr/YCbCr: 480i, 480p, 576i, 576p, 720p, 1,080i and 1,080P

PC-RGB: format up to 1,920 x 1,080 at 60Hz

Color: 16-, 24- and 32-bit

HDMI® 480i, 480p, 576i, 576p, 720p, 1,080i and 1,080p

Expansion function: USB, built-in DVD

Audio input:

S-video/CVBS left and right audio input

PC-RGB Pc: earphone input

Power:

Power requirement 12 and 5V

To panel: 3.3, 5 and 12V

Manage: low power consumable

Mode: standby <1W

OSD languages: English, (French, Spanish, Italian, German, Portuguese and Dutch) (Optional)

Key functions: CH-, CH+, menu, vol-, vol+, PC/AV and on/off (control by remote control)

Audio output: 2 x 5W (8Ω)

Comb filter: 3-D

De-interlace: 3-D

Weak signal enhancement: no

Noise reduction: yes

PIP/POP: yes

EPG: no

NICAM/A2, TELETEXT: yes

Panel resolution: up to 1,920 x 1,080 at 60Hz

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

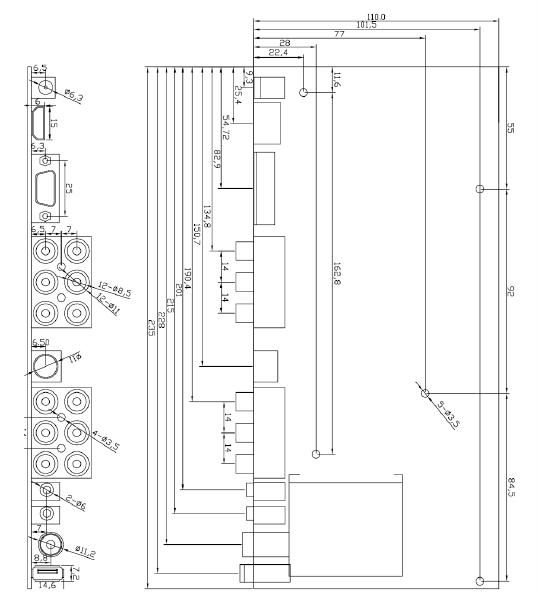

Dimensions

Support USB
