Dual Band GSM/UMTS 3G Mobile Phone Signal boosters,3G gsm receiver Indoor/outdoor 900/2100 mhz mobile signal booster

FOB Reference Price:Get Latest Price
$60.00 - $75.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
blank
Model Number:
RP-GU100D Set1
Frequency range:Uplink:
890-915MHz 1920-1900MHz
Frequency range :Downlink:
935~960MHz 2170-2110MHz
Gain ( dB):
Uplink Gp≥60; Downlink Gp≥65
coverage area:
500-2000m2
Output power (Po):
≥20dBm
Pass band ripple:
≤3dB
I/O impedance:
50Ω/N connector
Noise figure:
≤4dB
Ambient temperature:
-10 to 60
Power supply:
AC110/220V
Supply Ability
Supply Ability:
30000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1PC in a box
Port
Xiamen or Shenzhen
Lead Time :
Depending on the quantity

Dual Band GSM/UMTS 3G Mobile Phone Signal boosters,3G gsm receiver Indoor/outdoor 900/2100 mhz mobile signal booster

Model No.: RP-GU100D Set1



One Set Includes:

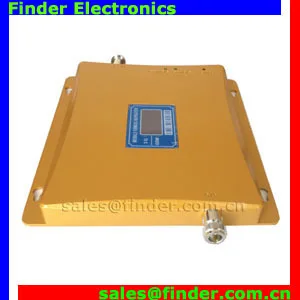

1x RP-GU100D Dual band GSM+3G Repeater with Power Supply

1x Outdoor Log Periodic Antenna

1x 10m Coaxial Cable with N Plugs for Connecting Outdoor Antenna and Booster

1x Indoor Ceiling Antenna with 2-3m Coaxial Cable




Introduction



A mobile phone signal repeater provides the ultimate solution in any indoor area where cellular communications can not work well due to leak of signals (but outdoor signal good).  The repeater device features easy installation & operation, build-in indoor antenna and no interference.  It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones.

A mobile phone repeater is ideal for house, home, office use.







High gain, easy installation and operation.
Full-duplex, single-port design.
Use ALC technology, adjust extent automatically
LED Light Working & Signal Condition Indicators
Big linear power, control intermodulation & scatteration stably
Dependability stand by GB6993-86 standard
Compatibility of electromagnetism according with ETS300 609-4





s.jpg:

Frequency rangeUplink 890-915MHz    1920-1900MHz
Downlink935~960MHz    2170-2110MHz
Gain ( dB)Uplink  Gp≥60
Downlink   Gp≥65
Output power (Po)≥20dBm
Pass band ripple≤3dB
I/O impedance50Ω/N connector
Noise figure≤4dB
Transmission Delay≤0.5μs
Ambient temperature-1060
Power supplyinput DC110/220V    output AC12v
Size240 x180 x 22 mm
ReliabilityTo the GB6993-86 standard
Electromagnetic compatibilityTo the ETS300 694-4 standard
Functiona) Power supply LED denote
b) Output power LED denote
coverage  area500-2000 m2 (depending on area condition)







 RP-GU100Dset



GU100D-2  GU100D-1Log Periodic outdoor antenna  ceilling antena





 other models.JPG

 HTB1o7FFGXXXXXXTaXXXq6xXFXXXw (GSM)



 RP-GD100D(GSM&DCS)

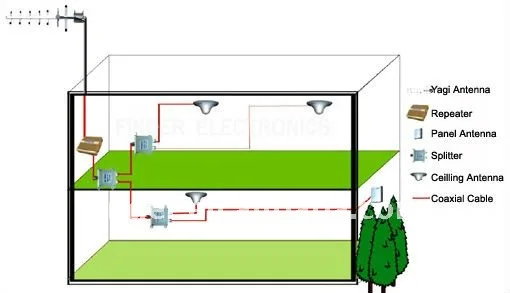

Installation Sketch:



Installation Sketch.jpg
