50m wireless HD extender, HDbitT 1080p extender, transmitter and receiver with IR extention

FOB Reference Price:Get Latest Price
1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
BLANK
Model Number:
HDR-T50
HD signal:
full compatible with HDPT
Support ptotocol:
HDbitT
Support resolution:
576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
IR remote control:
Support 20-60KHz IR remote device
Transmit distance:
up to 50m for 1080p 60Hz
Power consumption:
TX: 8.5W; RX: 5.5W
Enclosure material:
metal
Color:
Black
Description1:
HDbitT 1080p extender
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1 pc in a box
Port
Xiamen/Shenzhen
Lead Time :
Depending on the quantity

50m wireless HD extender, HDbitT 1080p extender, transmitter and receiver with IR extention



Model: HDR-T50

support resolution:  480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz





Introduction



This transmitter extends HDMI signal wirelessly from source device to display device up to 50meters with the advanced application of HDbitT transport protocol and wireless technology. It requires no cables between sender (TX) and receiver (RX) which makes the installation easy and clean.



Note:



1) Transmission distance will be different due to the environment.

2) Wall, brick or glass will shorten the signal cover range or cause big signal loss.





Important safety notice:



Please read below safety instructions carefully before installation and operation:

1. Please pay attention to all the warnings and hints on this device.

2. Do not expose this unit to rain, moisture and liquid.

3. Do not put any stuff into the device.

4. Do not repair the device or open the enclosure without professional person guidance to avoid electronic shock.

5. Make sure good ventilation openings to avoid product overheating damage.

6. Shut off power and make sure environment is safe before installation.

7. Do not plug-in/out the network cables and IR cables when it is in using to avoid cables damage.

8. Use DC5V only. Make sure the specification matched if using 3rd party DC adapters.





feature



1.  Transmit HDMI signal from source device to display device up to 50meters wirelessly.

2.   Support IR remote control function to control source device content from long distance.

3.    No cable between sender(TX) and receiver(RX).

4.    Easy and clean installation.

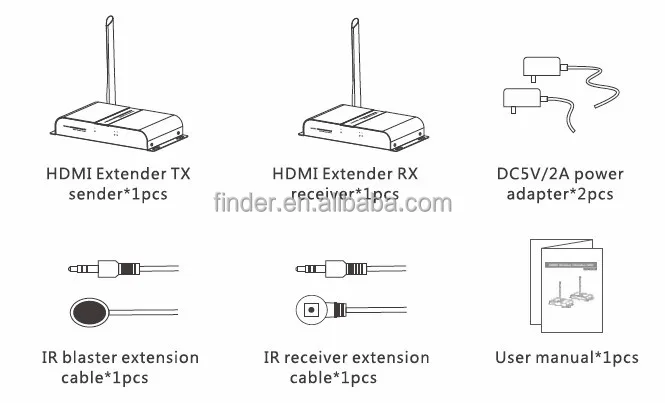

Package contents




Installation Requirement



1. HDMI source device (DVD, PS3, Set top box, PC etc)

2. HDMI display device like SDTV, HDTV, and projector with HDMI port.

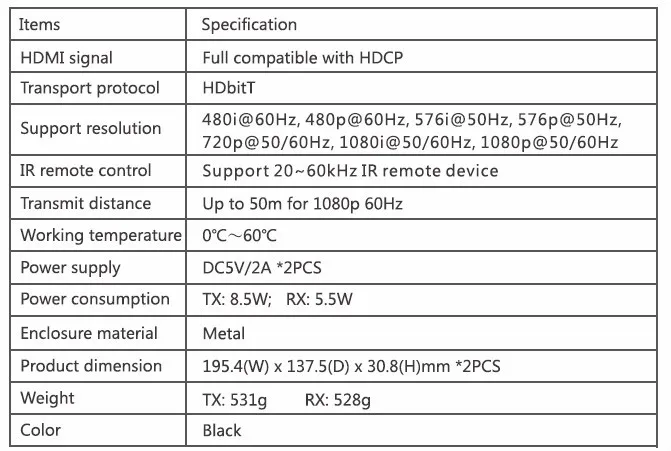

Specification








interface

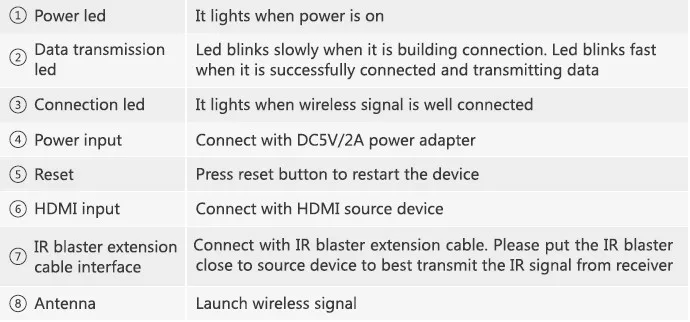

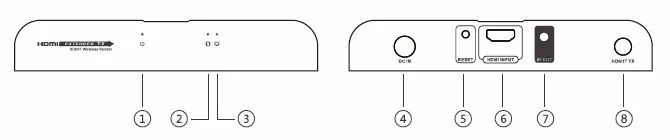

1.   HDMI Extender TX sender

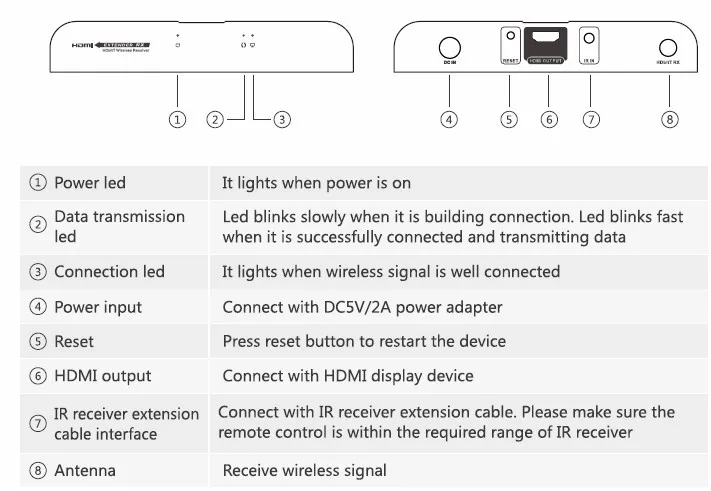

2.   HDMI Extender RX receiver

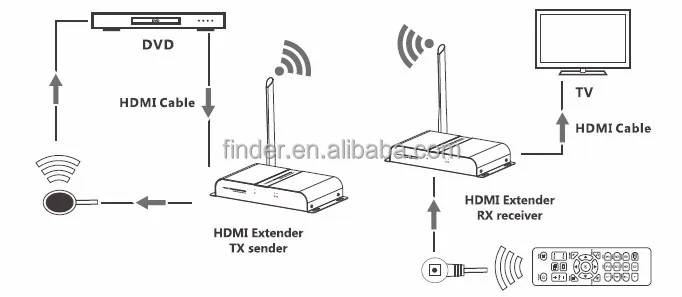

connection










Connection Instruction:



1). Connect HDMI input with HDMI source device and connect IR blaster extension cable with IR OUT interface of the sender (TX).

2). Connect HDMI output with HDMI display device and connect IR receiver extension cable with IR IN interface.

3). Power on the device (power led lights) and it works.



Note:



1)   When the wireless signal transmits through wall, glass or the other obstacles, it will cause signal loss. Suggest installing this device in good environment with few obstacles.

2)  The external environment wireless signal interfere the transmission, such as micro waver, wireless mouse and keyboard etc.





FAQ:



Q: TV display “waiting for connection” on the bottom right corner?

A: Please check if the power supply of TX (sender) and RX (receiver) is well connected and the power                   indicator led lights on.



Q:TV display “Please check the TX input signal”?

A: 1) please check if there is an HDMI signal input of sender TX

    2) Try to connect the signal source directly to display device to see if there is signal output from source                 device or change the signal source, HDMI cables and try again.



Q: Display not fluent and stable?

A: 1) Please move the position of sender (TX) and receiver (RX) and make sure the device is within the                     required signal range.

   2) Click “reset” button on the RX/RX panel, reset and reconnect.

   3) Remove other wireless signal disturbance and reduce the obstacles on the way.
