8 Ports HDMI Splitter, HDMI Ver 1.4 1x8 Amplifier Splitter, 4k 3D support

FOB Reference Price:Get Latest Price
1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
blank
Model Number:
HD-SP108N
Model No:
HD-SP108N
Input:
1 HDMI
Output:
8 HDMI
Version:
V1.4
Feature:
Support 3D Full HD 1080p
Power:
DC 12V
Max working current:
2000mA
Max bandwidth:
340MHz
Max baud rate:
10.2Gbps
Description:
HDMI Ver 1.4 1x8 Amplifier Splitter
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1PC in a color box
Port
Xiamen/Shenzhen
Lead Time :
Dependig on the quantity

8 Ports HDMI Splitter, HDMI Ver 1.4 1x8 Amplifier Splitter, 4k 3D support


Model: HD-SP108N
1 Input 8 Output
Version:V1.4
Support 3D Full 1080p








The  1x8 HDMI Splitter that supports Full HD 3D&4K*2K uses a single HDMI source,accessing to multiple HDMI sinks. The Splitter allows one HDMI devices to be split easily to eight HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable toregenerate the HDMI signal






One HDMI 1.4a input signal split to eight HDMI 1.4a sink devices

Support Full HD, Full 3D

Support 4K*2K resolution

Support CEC

Support deep color 30bit, 36bit, 48bit

Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC

Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD/HD(HBR)

Support signal retiming

Support input up to 15metres AWG26 HDMI standard cable length, output up to 20metres AWG26 cable length

No loss of quality

Installs in minutes

Need DC12V/3A power supply










HDMI version
HDMI 1.4a
HDMI resolution24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format24bit/deep color 30bit,36bit, 48bit
Support audio formatDTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth340MHz
Max baud rate10.2Gbps
Input/Output TMDS signal0.5~1.5Volts p-p(TTL)
Input/Output DDC signal 5Volts p-p (TTL)
Input cable distance≤15m HDMI AWG26
Output cable distance≤20m AWG26 HDMI standard cable
Max working current2000mA
Power adapter format..InputAC (50HZ, 60HZ) :100V-240V; Output: DC12V/3A
Operating Temperature range(-15 to +55°C)
Operating Humidity range5 to 90%RH (No Condensation)
Dimension (L x W x H)280X138X25(mm)
Weight871g
Accessories12V Power Adaptor, Manual








1. Connect one cable from HDMI source devices into HDMI Splitter input.

2. Connect one cable from each display (monitor or projector) into the HDMI Splitter outputs.

3. Connect 5V power supply to the HDMI 1x8 Splitter.

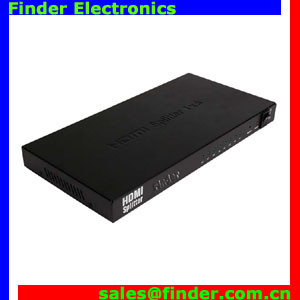

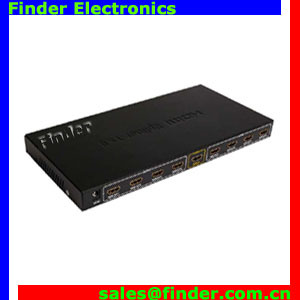

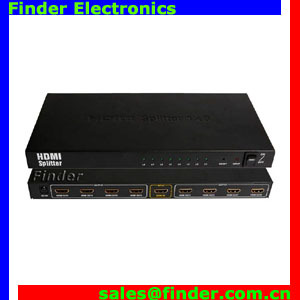

 HD-SP108newHD-SP108frontHD-SP108back

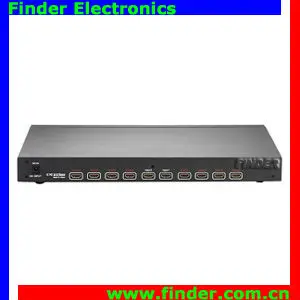

other models.JPG

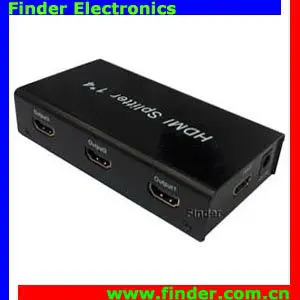

                                             HD-SP104M  .jpg
