900 1800 2100 tripple band mobile phone repeater booster with LED display

FOB Reference Price:Get Latest Price
$67.00 - $90.00 / Piece | 1 Piece/Pieces Tri-band mobile signal booster (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
Blank
Model Number:
RP-GDU980D
Gain ( dB):
Uplink Gp≥60; Downlink Gp≥65
Output power (Po):
≥23dBm
Noise figure:
≤4dB
Coverage Range:
500-2000 m2
Pass band ripple:
≤3dB
I/O impedance:
≤ 3.50Kg
Power Supply:
AC110/220V DC5V
Power LED:
Power Indicator
Feature:
Tri-band mobile signal repeater 3g
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month Tri-band mobile signal booster
Packaging & Delivery
Packaging Details
1 Piece Tri-band mobile signal booster in a box
Port
Xiamen or Shenzhen
Lead Time :
3-5 days after payment for mobile signal booster

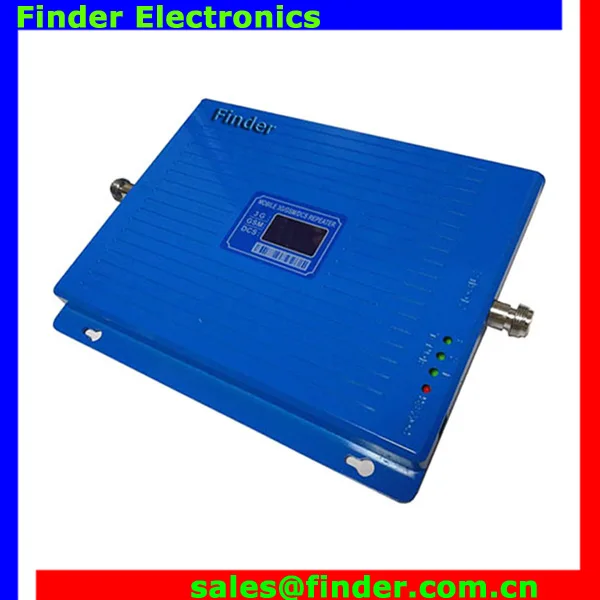

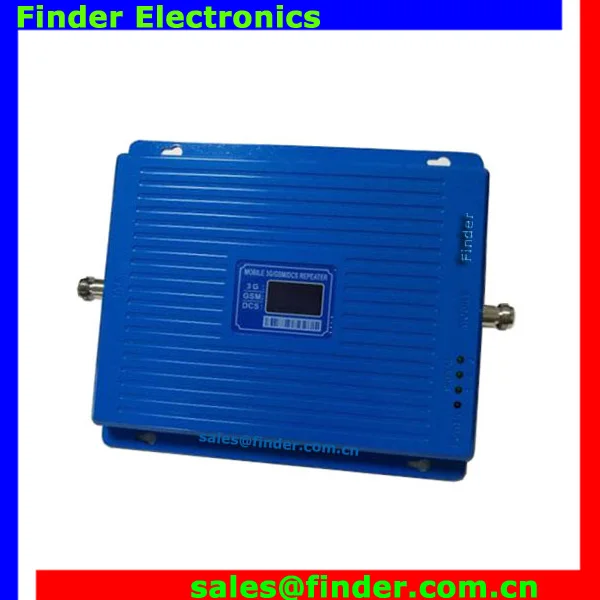

900 1800 2100 tripple band mobile phone repeater booster with LED display



Model: RP-GDU980D
900/1800/2100MHz Tri Band repeater

N Type connector

500-2000 square meter





*A mobile phone signal repeater provides the ultimate solution in any area where cellular communications can not work well due to leak of signals.

*The repeater device features easy installation & operation, build-in indoor antenna and no interference.

*It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones.
*A mobile phone repeater is ideal for house, home, office use.

*The device featured by easy installation & operation and no interference. It is the ideal device for boost mobile phone signal.

*A mobile phone repeater could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones.





High gain, easy installation and operation.
Full-duplex, single-port design.
Use ALC technology, adjust extent automatically
LED Light Working & Signal Condition Indicators
Big linear power, control intermodulation & scatteration stably
Dependability stand by GB6993-86 standard
Compatibility of electromagnetism according with ETS300 609-4



Frequency rangeUplink: 890-915MHz,  1710-1785MHz, 1920-1990MHz
Downlink: 935-960MHz, 1805-1880MHz, 2110-2180MHz
Gain ( dB)Uplink  Gp≥60
Downlink   Gp≥65
Output power (Po)≥23dBm
Pass band ripple≤3dB
I/O impedance

50Ω/N connector

Noise figure≤4dB
Transmission Delay≤0.5μs
Ambient temperature -10°C ~ 60°C
Power supplyAC110/220V   DC5V
Size250 x190 x 22 mm
ReliabilityTo the GB6993-86 standard
Electromagnetic compatibilityTo the ETS300 694-4 standard
Functiona) Power supply LED denote

b) Band LCD denote

c) Signal LCD display

coverage  area500-2000 m2 (depending on area condition)



* The coverage area depends on the regin's condition and external signal strength.



** The specifications are only for reference, and subject to change without notice.

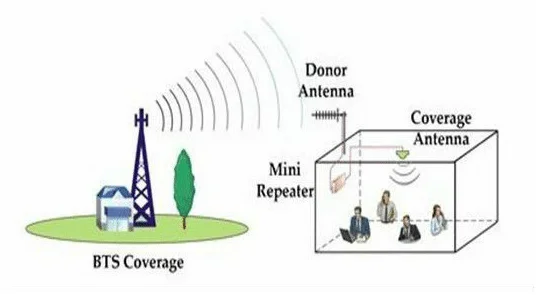

How Booster/Repeater Works?

Repeaters are designed to fulfill the idea of one and main principle: to fill the areas with the weak or bad signal and to amplify these low signals in order to provide you with the communication suitable for you.

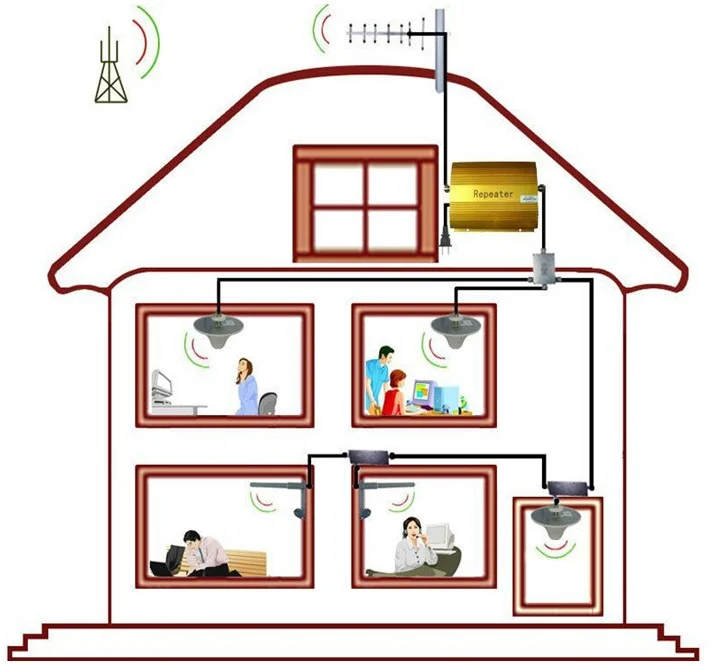

Installation Approaches

  1. Fix up outdoor antenna reception on housetop and point to signal tower.
  2. Connect outdoor antenna to “outdoor” port in repeater machine through cable.
  3. Connect indoor antenna(s) to “indoor” port in repeater machine through cable also.
  4. Plug power adaptor into AC power socket and finish installation.

Technique Supporting

  1. If still no signal receipt after activated repeater, please check if outdoor antenna point to signal tower or elsewhere have strong signal and check if strength achieve -70DBM.
  2. If can not call out, please adjust the direction of outdoor antenna.
  3. If strength is not steady, please check if outdoor & indoor antennas are too close. Please ensure the outdoor and indoor antenna have distance of 20 meters at least, with a wall between and not at the same horizontal line(outdoor antenna can be one floor higher than the repeater and indoor antenna).
  4. Indoor antenna and repeater better to be minimum 4 meters far away from nearby windows and doors.

To use this product to enlarge your signal, the outdoor signal shall be as good as possible. The product will not work well if our outdoor signal is not good or bad.



In case the indoor signal is always very low while outdoor signal is very good, the repeater can work well. If the indoor signal is sometimes full sometimes not at all before installing,  this environment is not suitable to install the repeater.



Reasons to Purchase Cell Phone Repeater.



1) The Signal Repeater provides the well-organized service that is why after installation of the system the quality of the connection will be really great.

2) Signal Repeater require no additional wires being attached to your cell phone thus allowing you to use your cell phone without any extra troublesome accessories, in other worlds, no physical connection to your cell phone.

3) They are practical, beautiful and easy to install. You will not need to hire anybody to provide the installation of the equipment. You will be able to install it by yourself using only the manual list attached to your repeater.

4) The system can be used by multiple phones. All phones that are under the coverage and are suitable for the frequency of your repeater can use the amplified signals.

5) Signal Repeater is able to cover different coverage: from small to large. In this case you can decide which of our repeater is suitable for your office or supermarket.

6) Repeater works at full duplex. It means that they not only receive the weak signal from the mobile base station and then divert to mobile phone after amplifier. They also receive the signal from your mobile phone and then send it to the mobile base station.

7) Our equipment is completely safe. Mobile repeaters do not produce any radiation.



The repeater makes the signal stronger in places with poor signal coverage such as:



1) Underground areas: basements, parking lots, tunnels;



2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;

3) Places distant from the BTS like private houses.



Note:

One indoor antenna only use for about 300 square meters. If you want to make all use of 1000 square meters which the host supports, you need to add more indoor antennas (about 3-4) and power divider / splitter.  Welcome your inquiry if you need.



Our Services

Sample Orders are supported. OEM service is available. We can make customized logo on product and packaging per requirement.

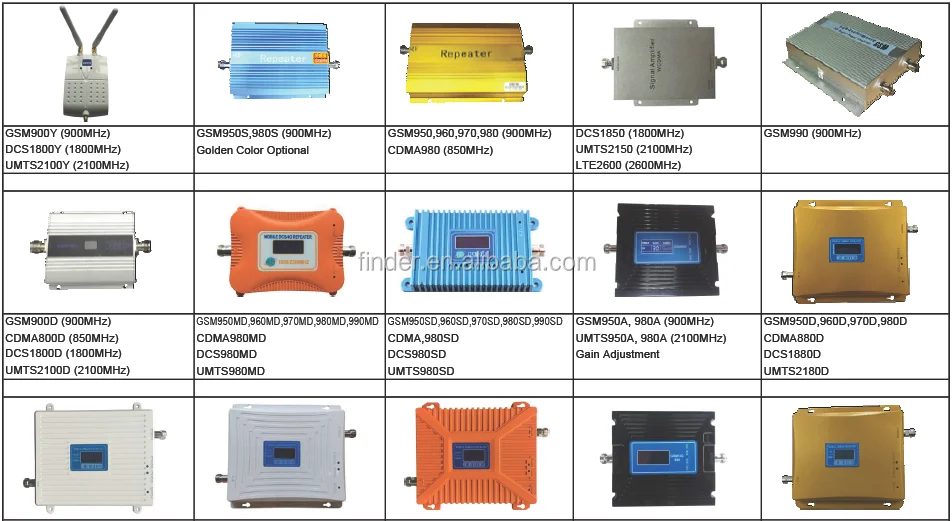

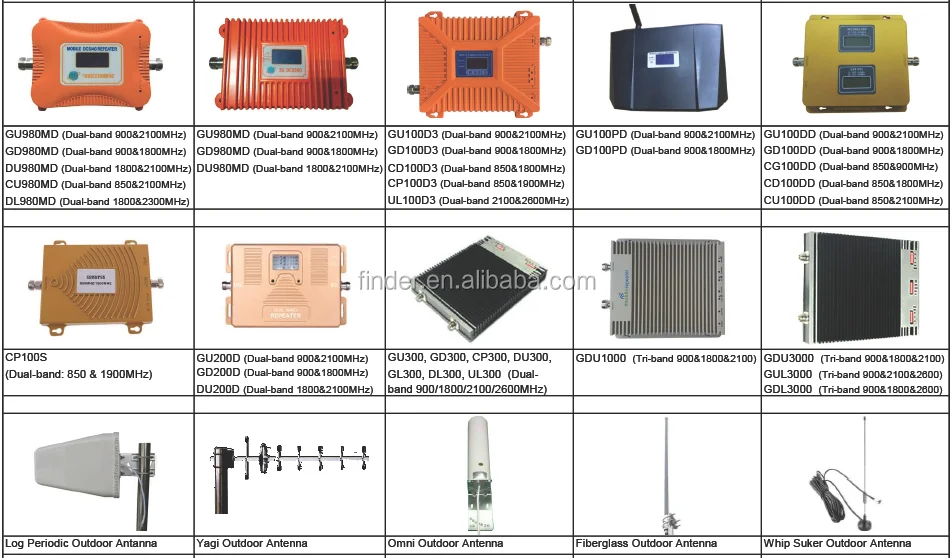

Other Models



Mobile signal booster 1.PNGMobile signal booster 2.PNG
