HDMI 4 Ports 1x4 Powered Splitter V1.4 Certified for Ultra HD 4Kx2K Full HD 1080P 3D HDMI Adapter

FOB Reference Price:Get Latest Price
$7.20 - $9.20 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
OEM
Model Number:
HD-SP104SN
Feature:
HDMI splitter
HDMI version:
HDMI 1.4b
HDMI Resolution:
up to 3840*2160/30Hz
Support Audio Format:
DTS-HD/Doby-trueHD/DTS/Dby-AC3/DSD
Supply Ability
Supply Ability:
3000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details

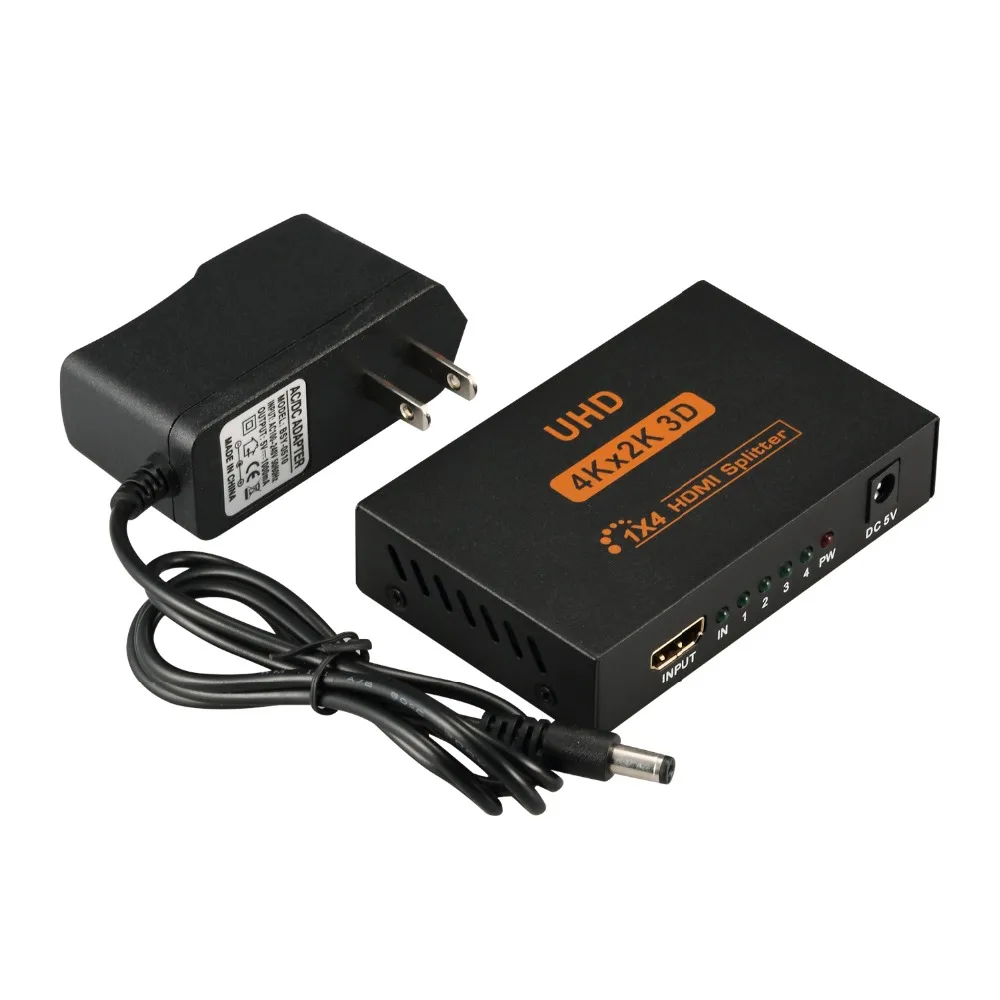

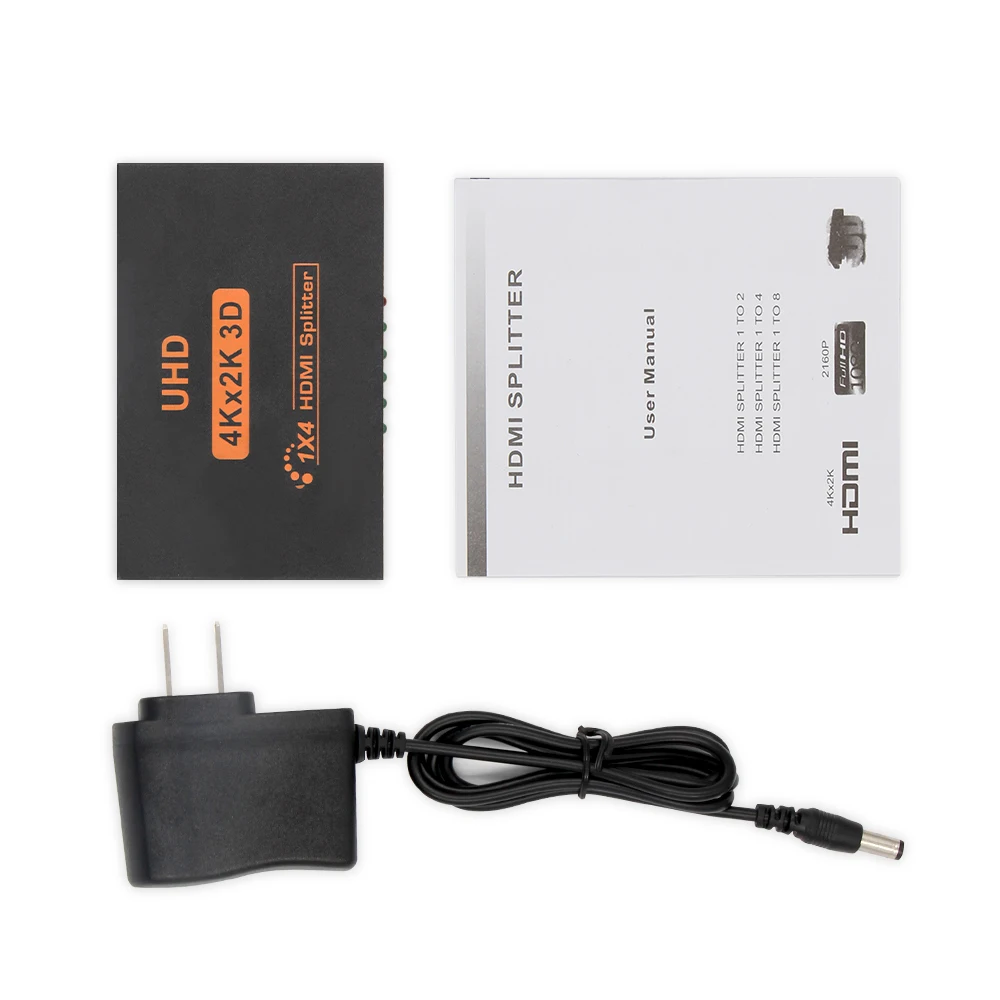

One piece with power adapter+instruction in a box
Port
Shenzhen or Xiamen

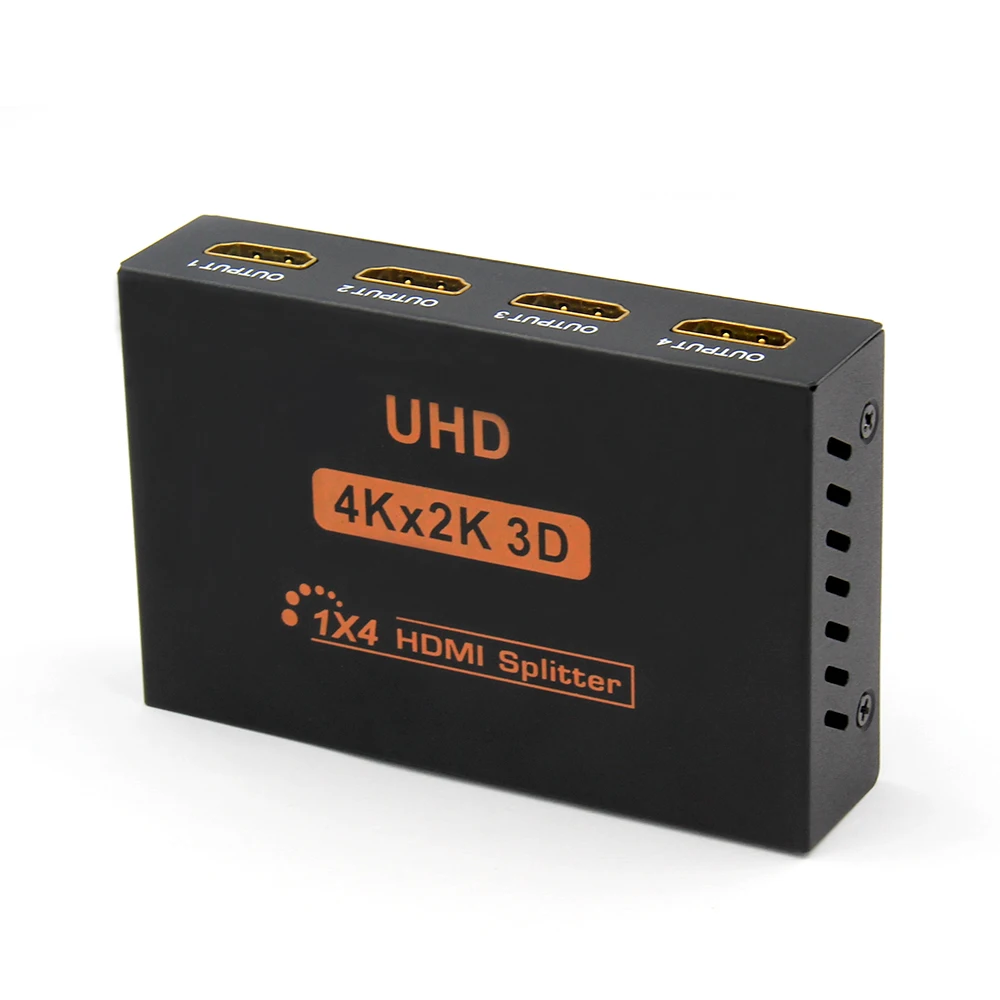

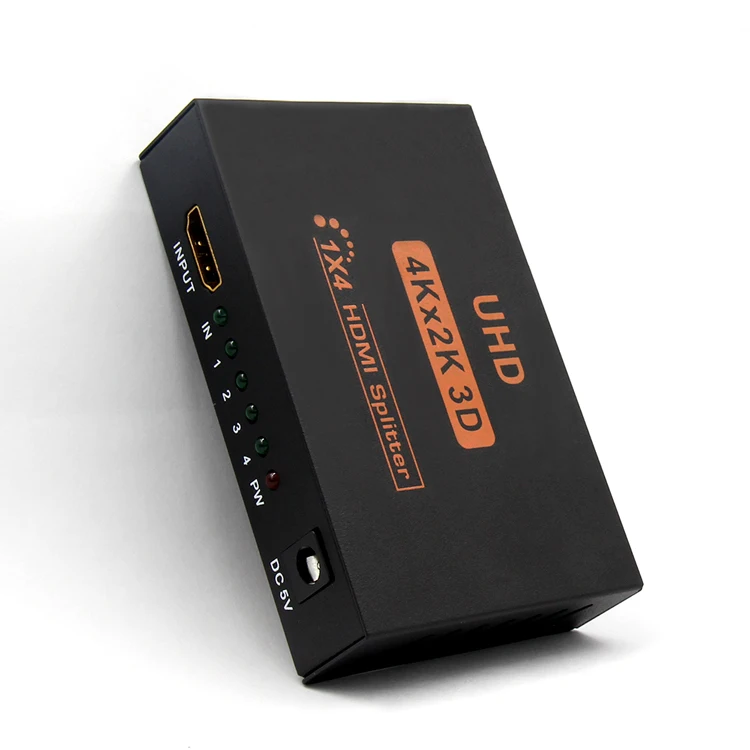

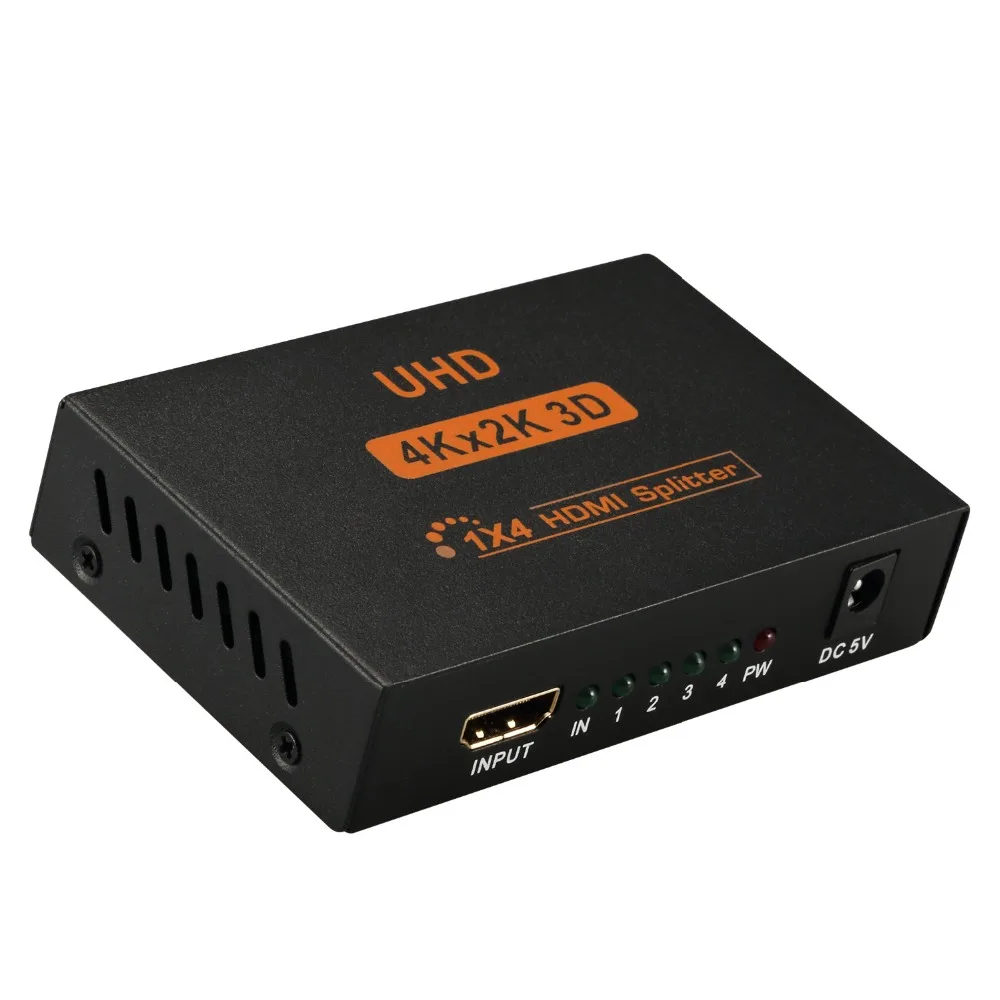

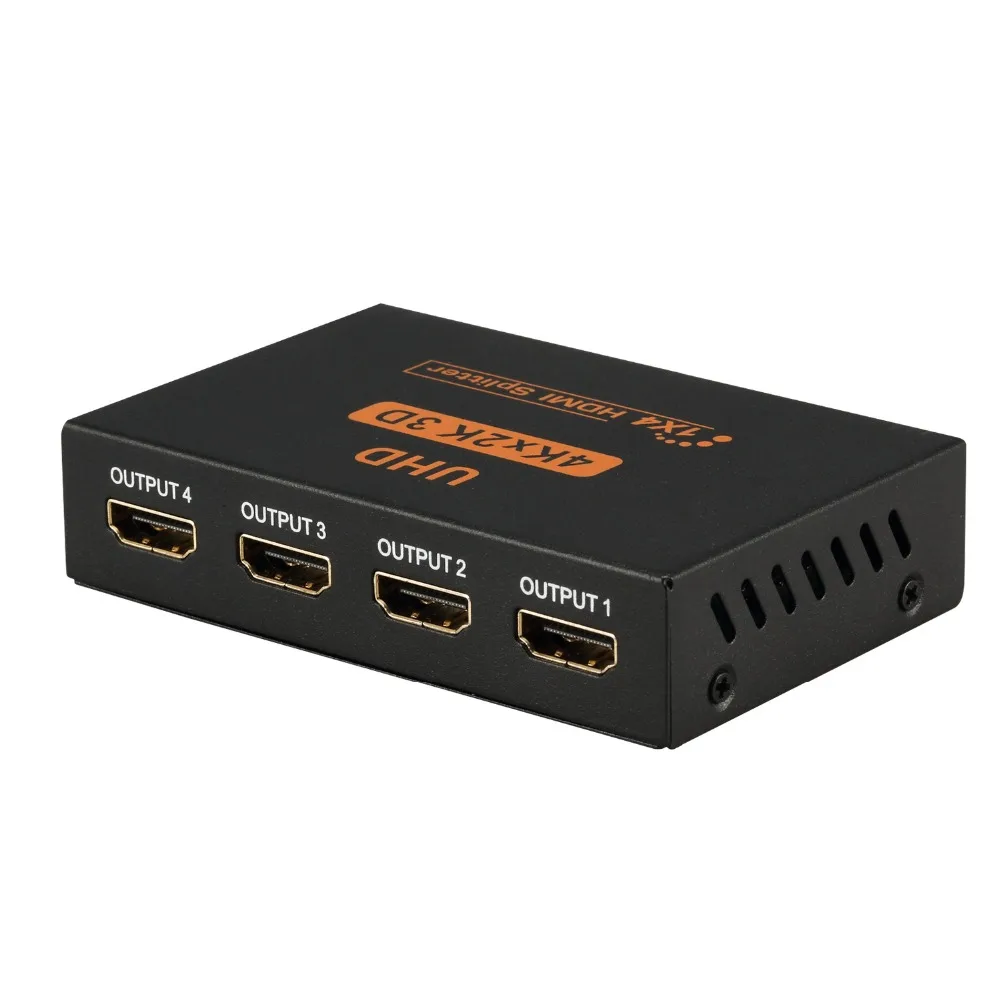

Model: HD-SP104SN

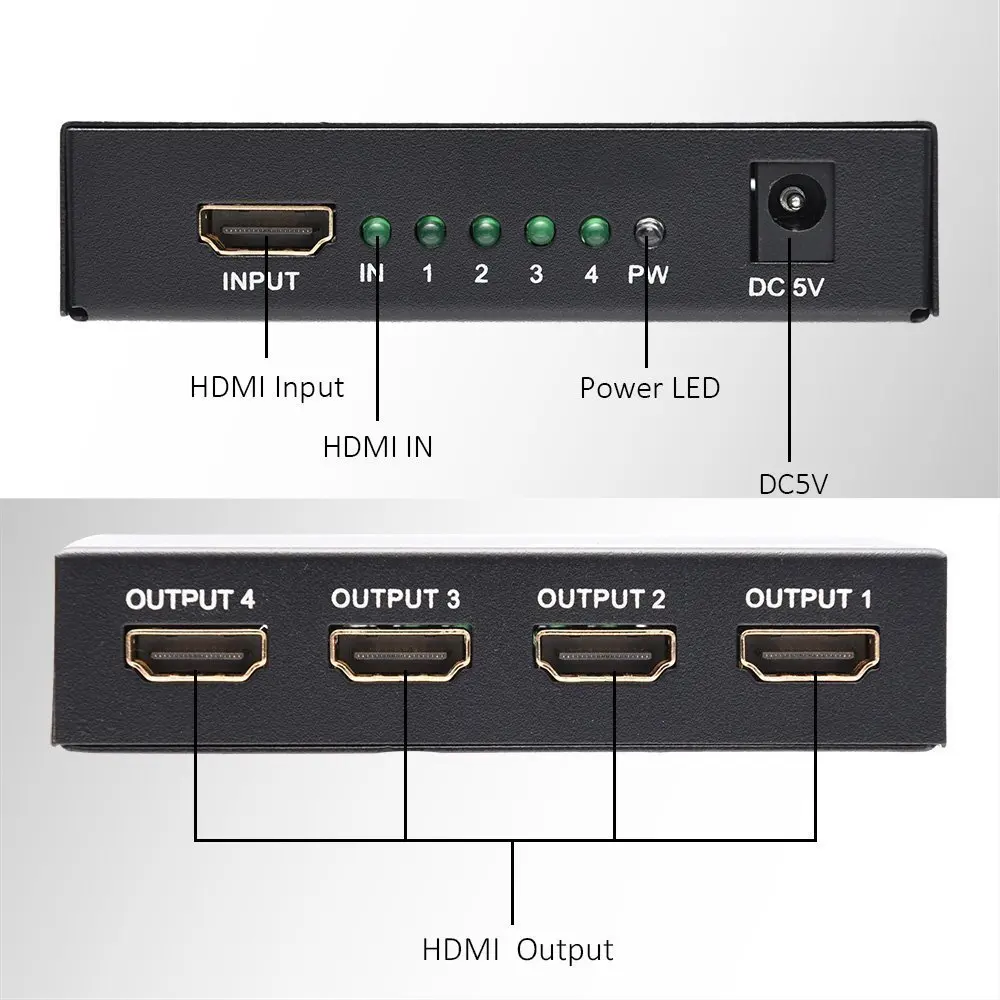

Input: 1xHDMI

Output: 4xHDMI



4kX2K Latest Model 3D UHD 1.4V mini HDMI Splitter 1x4 1input 4 output splitter with 5v 1A power

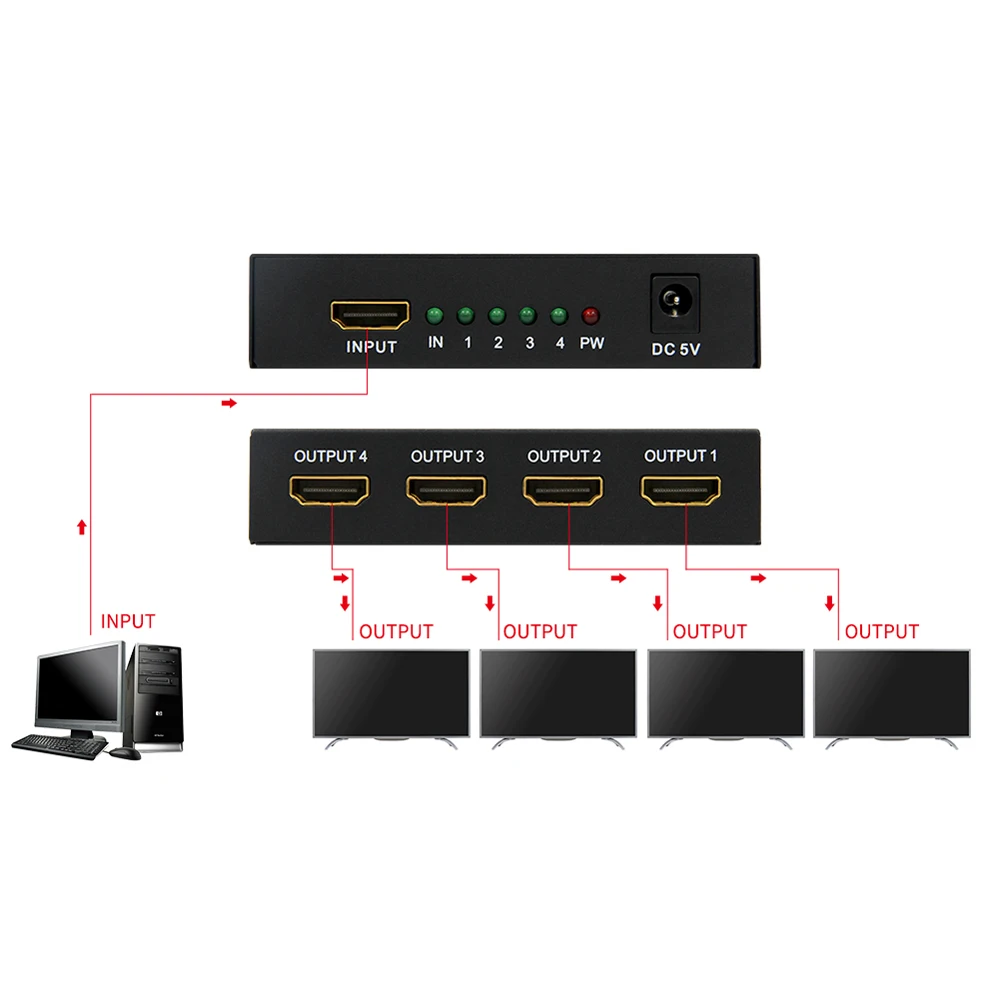

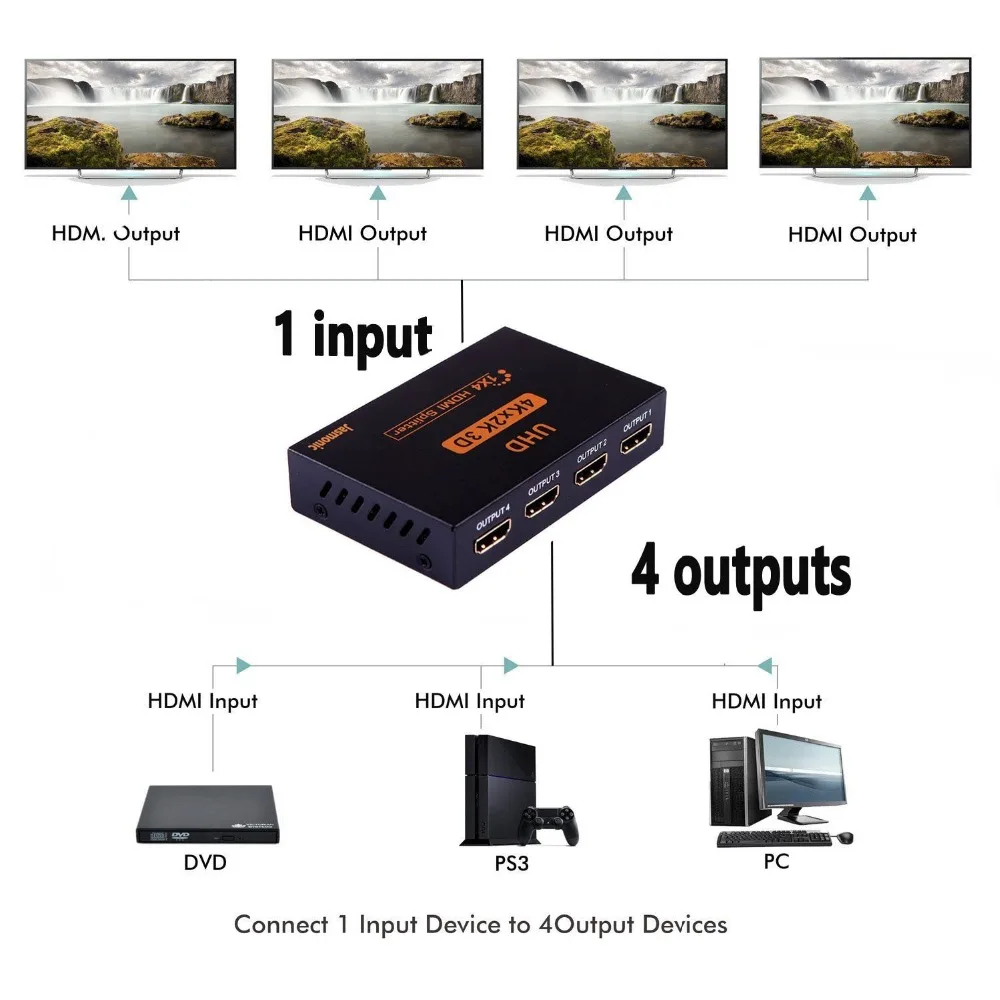

This 1x4 hdmi splitter use a single HDMI source,accessing to multiple HDMI sinks .It allows one HDMI device to be split easily to four HDMI compatible monitors or projectors.In addition,It can also be placed at the end of a long HDMI cable to regenerate the HDMI signal. The resolution of this hdmi splitter can be up to 3840X2160/30HZ.



4kX2K Latest Model 3D UHD 1.4V mini HDMI Splitter 1x4 1input 4 output splitter with 5v 1A power



1) Support HDMI 1.4b version

2) Support 3D video format

3) Support high resolution up to 3840X2160/30HZ

4) Support highest rate of 3.2 G and TMDS clock can be up to 320 MHz

5) Support 8/10/12 bit deep color

6) Support AWG26 HDMI standard cable: input up to 15 meters,output up to 25 meters.

(when the resolution is 4K, input up to 12 meters, output up to 15 meters.)

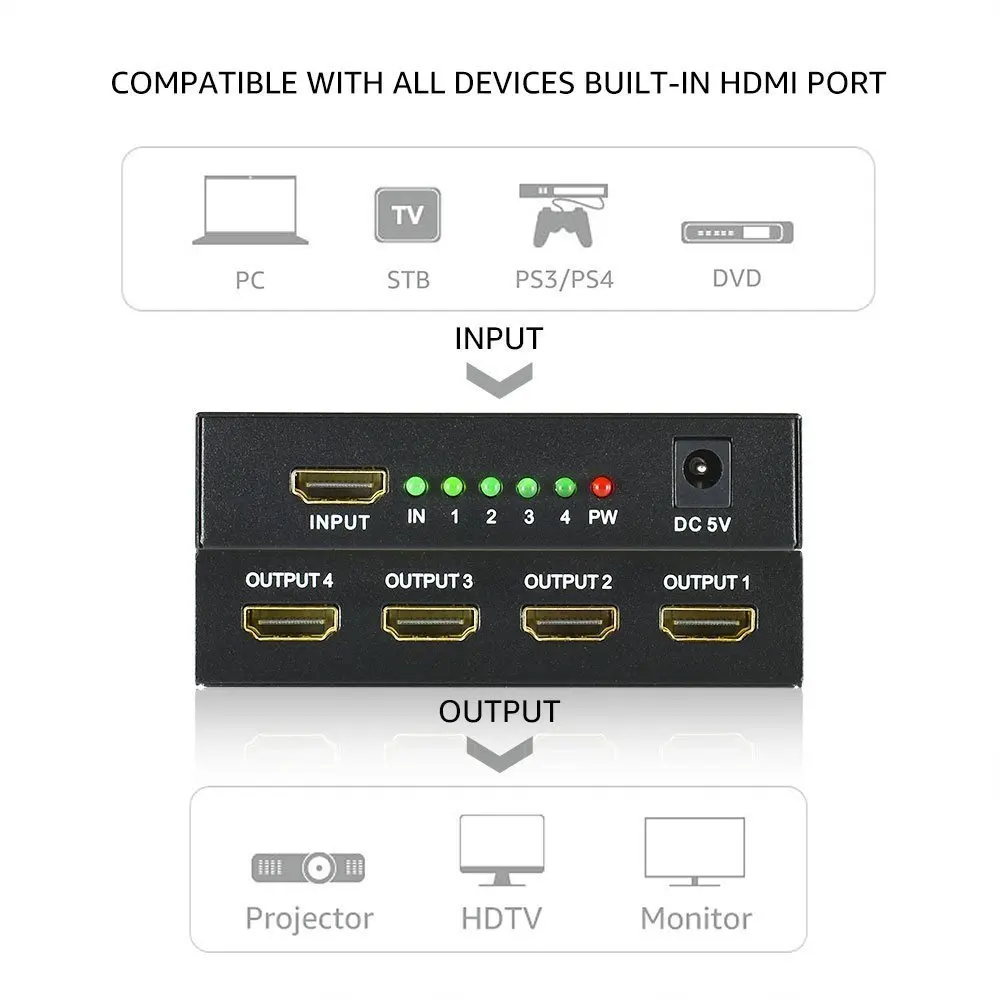

7) Support one single HDMI source, accessing to multiple HDMI sinks, the source can be     DVD player, A/V receiver, set top box and ect.

8) 5V/1A power adapter



4kX2K Latest Model 3D UHD 1.4V mini HDMI Splitter 1x4 1input 4 output splitter with 5v 1A power



HDMI version…………………………………………………..………………………………………………………………… HDMI 1.4b

HDMI resolution ……………………………….. ……….. ……………..……………………………………up to 3840*2160/30Hz

Support video color format ………….………..………………..……………………………….……… deep color 8/10/12bit

Support audio format………..……………..……….……………………… DTS-HD/Doby-trueHD/DTS/Dby-AC3/DSD

Max bandwidth…………………..………………..…………………………………………..……………………………………320MHz

Max transmission bandwidth…….…………..…………….………………………………..…………………………………3.2Gbps

Input cable distance.…………………………….(1080p resolution) ≤15m,(4K resolution)≤12m AWG26 HDMI standard cable

Output cable distance…………………………(1080p resolution) ≤25m,(4K resolution)≤15m AWG26 HDMI standard cable

HDMI input ………….………..…………..…………..……….…………..………….……..………………………………………………1

HDMI output………………………..…………..………………..…………..………………..…………………………………………… 4

Max working current…………………………………………………..……………………......………………….…………………500mA

Power adapter format ……………...……………………Input: AC (50HZ, 60HZ) 100V-240V; Output: DC12V/5A

Operating Temperature range……..……………..………………………………………………………………… (-15 to +55℃)

Operating Humidity range……………………………...….……….…………………………5 to 90%RH (No Condensation)

Dimension (L x W x H)………………………………..………..……………………………………………………230x155x60 (mm)

Weight…..………………………………………..…..…………..……….……………………….……………………………………0.54kg

4kX2K Latest Model 3D UHD 1.4V mini HDMI Splitter 1x4 1input 4 output splitter with 5v 1A power
